Anatomy of a Logo: Mezz Galactic Tour 2493

In the second week of November 1992, Dark Horse editor, Anina Bennett, called and offered two logos to me: Hammer of God (shown last week) and Mezz. (They were followed by Will to Power and Barb Wire.) I said I was interested and waited for her package.

Anina’s package included photocopies of a few finished pages, some penciled pages. Her cover letter, dated November 16, 1992, described the book’s concept.

Thumbnail sketches

Thumbnail designs

Preparing to develop the top design

Refining the design and adding effects

Photocopy enlargement of thumbnail design
and preparation to develop it

Tracing paper overlay

Refining the design

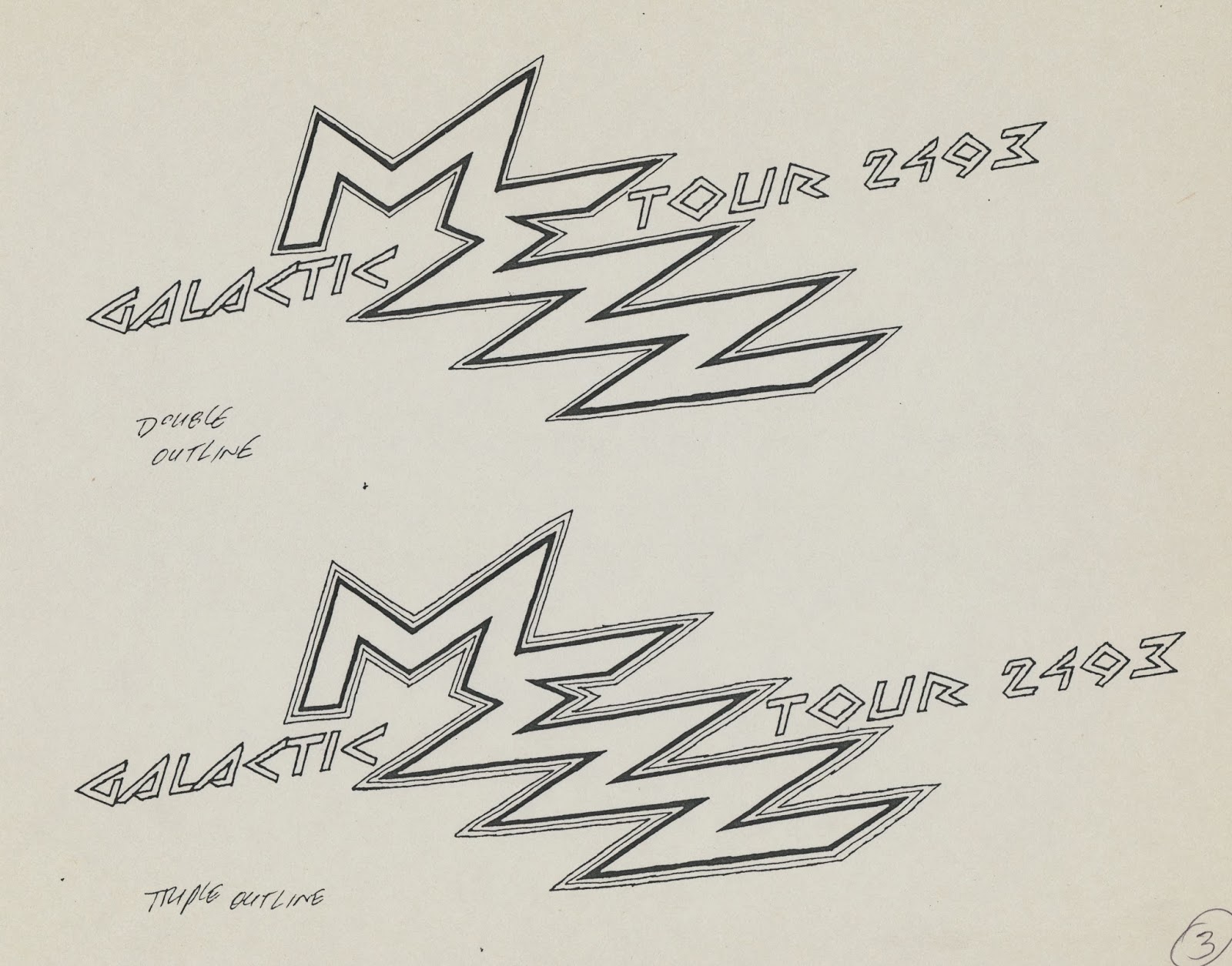

Various effects

Photocopy enlargement of design

and preparation to develop it

A single letterform for M and E. Optically,

the M looks shorter than the E and Z.

Subtitle in a square grid

Various effects and alternate arrangement of subtitle

Anina selected sketch 1A.

Spacing adjusted between letters and words of subtitle

A same-size photostat was made of the original art for my
files. Below is a scan of the stitched-together photostat.

Mezz, scheduled for 1993, takes place 500 years in the future. Mezz was delayed a year, so someone at Dark Horse adjusted the subtitle’s year to 2494. The comic book cover had a May 1994 date.
